TD-101A/B Automatic Strapping Machine for Export Cartons & Parcels

Name: TD-101A/B
Brand: CECLE
Price: 3299.0 USD
Availability: InStock

$3,299.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model TD-101A TD-101B

Shipping Method By sea to door(About 35-55 days)

Quick Answer: The CECLE TD-101A/B TD-101A and TD-101B are high-efficiency fully-automatic strapping machines engineered for conveyor lines and high-volume batch packaging stations in e-commerce, printing, and logistics industries.

CECLE TD-101A/B vs. Traditional / Generic Alternative

Where the CECLE TD-101A/B stands out against manual or generic automatic strapping machines — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE TD-101A/BZero Buckle Cost: Buckle-free thermal sealing eliminates metal clip procurement and manual threading time.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE TD-101A/BFlexible Non-Standard Customization: Arch dimensions and tabletop heights can be fully customized to meet specific package specifications.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Working Capacity & Batch Size

CECLE TD-101A/BLoad Capacity: 80 KG

Bench-Scale Batch SizeRated for a handful of pieces per cycle, so a full production day needs repeated passes and extra hands to keep up.

Tension Force & Load Security

CECLE TD-101A/BTension Force: 0 – 60 KG (Adjustable)

Preset Low-Tension MotorTension tops out well below what a full pallet needs, so loads shift in transit and carriers reject them at the dock.

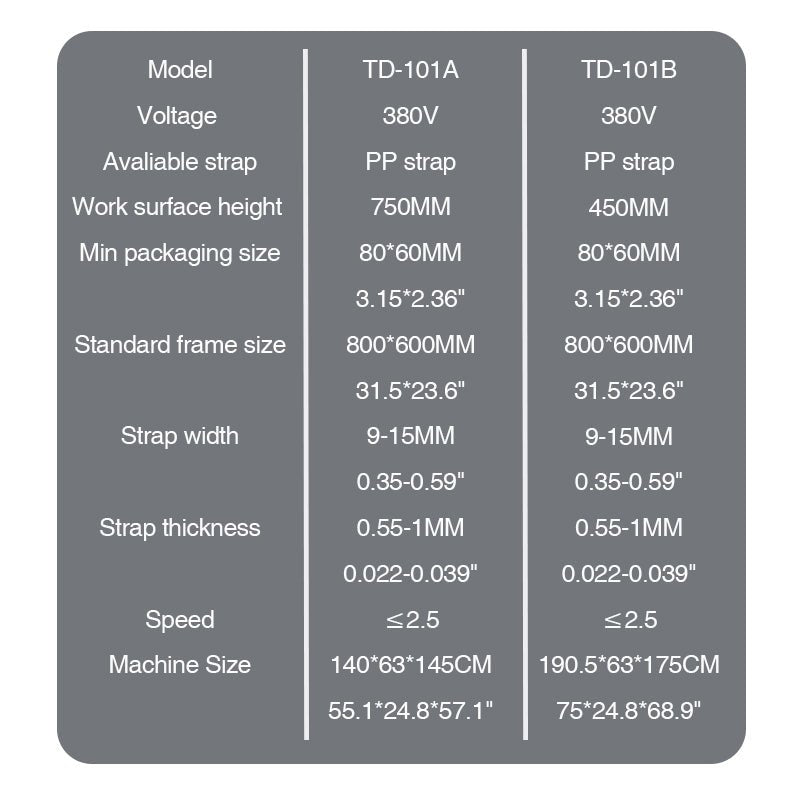

Technical Specifications

Items	TD-101A (High-Table)	TD-101B (Low-Table)
Power Supply	380 V · 50/60 Hz · 1.0 kW	380 V · 50/60 Hz · 1.0 kW
Table Height	750 mm	450 mm
Load Capacity	80 KG	80 KG
Min. Package Size	W 80 × H 60 mm	W 80 × H 60 mm
Standard Frame Size	W 800 × H 600 mm	W 800 × H 600 mm
Strapping Speed	≤ 2.5 s / strap	≤ 2.5 s / strap
Tension Force	0 – 60 KG (Adjustable)	0 – 60 KG (Adjustable)
Strap Specification	Width 9–15 (±1) mm, Thickness 0.55–1.0 (±0.1) mm	Width 9–15 (±1) mm, Thickness 0.55–1.0 (±0.1) mm
Machine Dimension	1400 × 628 × 1418 mm	1905 × 628 × 1750 mm
Machine Weight	220 KG	270 KG

Compatible Applications & Materials

industrial products — primary target products for this Automatic Strapping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Position Package: Place the package onto the tabletop (keep load within 80 KG) and push it into the arch
Trigger Strapping: Automatically triggers based on the selected mode—the machine executes feeding ➔ tensioning ➔ hot-weld sealing ➔ cutting , completing a single cycle in ≤2.5 seconds
Inspect Joint: A qualified joint should feature complete fusion across the entire width, zero cold welds, and zero skewing (sealing position deviation within ≤2 mm)
Remove Package: Take away the package and proceed to the next cycle
Shutdown: Turn off power and retract residual strap
clear the strap track and disconnect power for long-term storage to prevent moisture damage.

Engineering FAQ

What is the actual difference between fully-automatic and semi-automatic machines?
A: Semi-automatic machines require operators to manually insert the strap into the track before the machine activates; fully automatic units feed straps automatically , strapping instantly upon package placement in ≤2.5 seconds. That single strap-insertion step dictates your total labor headcount during high-volume periods.

How do I choose between the three operating modes?
A: Use Sensor Mode for conveyor line integration or automatic package positioning; use Manual Mode for small batches requiring precise per-strap control; use Automatic Mode for high-volume continuous operations. Switch effortlessly via knob without rewiring.

What if my boxes are larger than the arch frame?
A: The standard arch frame measures W 800 × H 600 mm, but can be non-standard customized according to your package dimensions; minimum package size must exceed W 80 × H 60 mm.

What routine maintenance keeps the TD-101A/B stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the TD-101A/B handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
