KZB-DL Side-Sealed Strapping Machine for Seafood & Frozen Cartons (Automatic)

$1,399.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model KZB-DL

Shipping method By sea to port(About 25-35 days) By sea to door(About 35-55 days)

Quick Answer: The CECLE KZB-DL is a specialized semi-automatic side-sealed strapping machine specifically engineered for aquatic products, seafood, frozen foods.

CECLE KZB-DL vs. Traditional / Generic Alternative

Where the CECLE KZB-DL stands out against manual or generic side-sealed strapping machines — measured on the dimensions buyers care about most.

Thermal Response & Heating System

CECLE KZB-DLZero Buckle Cost: Thermal sealing eliminates the procurement and threading of metal clips, leaving flat and aesthetically pleasing joints

Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.

Precision & Consistency

CECLE KZB-DLSimple & Safe Operation: Intuitive control panel allows workers to operate the machine with minimal training; external strap roll design makes strap replacement quick.

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Build Material & Cleanability

CECLE KZB-DLStrap Material: PP Strap

Painted Mild-Steel ShellPaint chips at welded seams and rusts where water collects, and rolled edges trap grease that a normal wash-down cannot reach.

Strap Compatibility & Range

CECLE KZB-DLStrap Width: 9 – 15 mm

Fixed Single-Strap ArchAccepts one strap width only, so every changeover needs a second machine or a field retrofit, and off-width strap jams in the guide track.

Technical Specifications

Items	Specifications
Model	KZB-DL
Voltage	220 V
Automation	Semi-Automatic
Strap Material	PP Strap
Strap Width	9 – 15 mm
Strap Thickness	0.65 – 1.0 mm
Strapping Speed	< 3 s / cycle

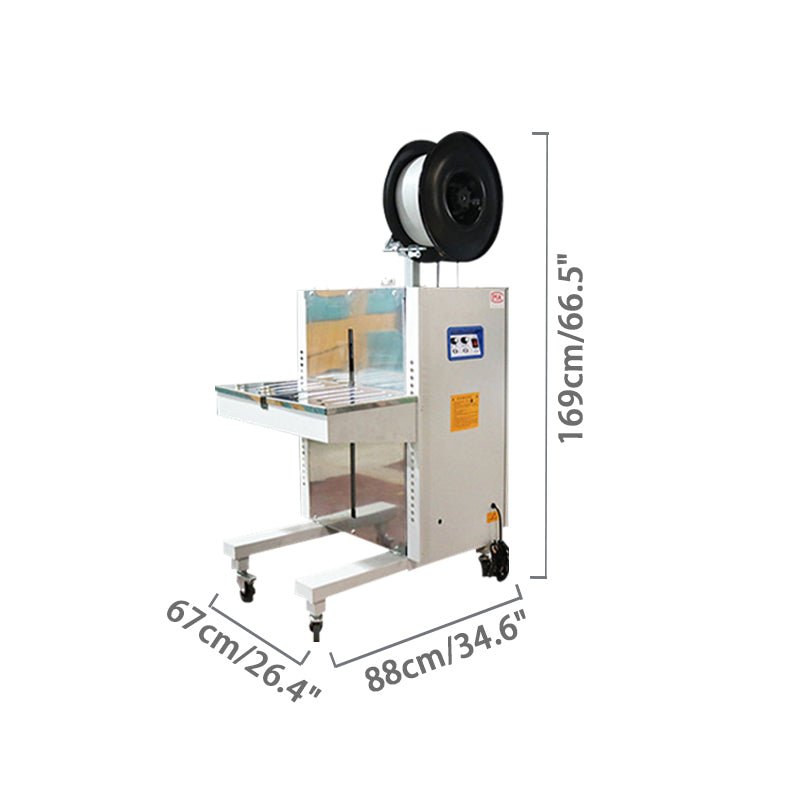

Machine Dimension	970 × 665 × 1640 mm
Weight	90 KG

Pre-installation requirements: Voltage: 220 V; Machine Dimension: 970 × 665 × 1640 mm; Net Weight: 90 KG (198.4 lb).

Compatible Applications & Materials

industrial products — primary target products for this Side-Sealed Strapping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Power On &amp
Preheat: Connect power, turn on the master switch, and allow the heating element to warm up for 1–2 minutes
Position Package: Push the item to be strapped onto the side strapping tabletop
Manual Feed: Wrap the PP strap around the package and insert the end into the side mechanism port
Auto Strapping: The machine senses the strap and automatically executes the full cycle of tensioning, heat-sealing, cutting, and strap resetting
Remove Package: Take away the strapped goods and prepare for the next packaging cycle.

Engineering FAQ

What is the difference between a side-sealed machine and a standard semi-automatic strapping machine?
A: The difference lies in the mechanism placement . Standard machines have their core mechanism positioned directly beneath the tabletop; when bundling wet or debris-laden goods, water droplets and fragments slide down tabletop gaps directly into the core, causing rust, corrosion, and jams. The side-sealed machine relocates the mechanism to the side of the machine body , preventing liquid and debris entry. This is a structural difference, not merely a spec difference.

Do I really need a side-sealed machine for seafood and aquatic products?
A: Highly recommended. Wet goods such as seafood, fresh frozen foods, and ice blocks are the prime operating scenarios for side-sealed machines. While standard machines might work temporarily, long-term internal moisture and rust lead to extremely high failure rates, where production downtime losses far outweigh the equipment price difference.

Are metal clips required? Is the joint secure?
A: Absolutely no clips are needed. The unit utilizes thermal heat-sealing, fusing the strap to itself for a flat, secure, and hand-safe joint while saving procurement and threading time.

What power supply does the KZB-DL require?
A: The KZB-DL runs on 220 V Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the KZB-DL?
A: Beyond the rated 220 V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the KZB-DL stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
