CECLE Machine

JD-1316 Handheld Strapping Tool for Cartons, Bundles & Pallets (Electric Drive)

Name: JD-1316
Brand: CECLE
Price: 699.0 USD
Availability: InStock

$699.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model JD-1316

Shipping method By Express(About 7-12 days)

Quick Answer: The CECLE JD-1316 is a versatile, cordless handheld battery-powered strapping tool universally compatible with both PET and PP straps (13–16 mm).

CECLE JD-1316 vs. Traditional / Generic Alternative

Where the CECLE JD-1316 stands out against manual or generic handheld strapping tool — measured on the dimensions buyers care about most.

Portability & Handling

CECLE JD-1316Lightweight for Fatigue-Free Operation: Main unit net weight is only 2.8 KG , ergonomically designed for single-hand operation.

Two-Part Tool With Air LineA separate tensioner and sealer plus an air hose tether the operator to one spot, so every pallet is a two-person job and fatigue sets in by mid-shift.

Output Speed & Throughput

CECLE JD-1316Noticeable Efficiency Boost: Completes a single strap cycle (tensioning + welding + cutting) in just a few seconds.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Strap Compatibility & Range

CECLE JD-1316Applicable Strap Material: Universal for PET Strap / PP Strap

Fixed Single-Strap ArchAccepts one strap width only, so every changeover needs a second machine or a field retrofit, and off-width strap jams in the guide track.

Tension Force & Load Security

CECLE JD-1316Tension Force: 600 – 2800 N

Preset Low-Tension MotorTension tops out well below what a full pallet needs, so loads shift in transit and carriers reject them at the dock.

Technical Specifications

Items	Specifications
Model	JD-1316
Charger Voltage	110V / 220V
SKU Configuration	Standard Kit (1 Battery & 1 Charger)
Applicable Strap Material	Universal for PET Strap / PP Strap
Strap Width	13 mm – 16 mm
Strap Thickness	0.5 – 1.2 mm
Tension Force	600 – 2800 N
Sealing Method	Friction Weld (Buckle-Free, No Metal Seals)
Welding Time	1–3 seconds (Adjustable)
Battery Specification	Lithium Battery 11.1V 3.0Ah
Machine Dimension	340 × 130 × 118 mm / 13.4" × 5.1" × 4.7"
Net Weight	2.8 KG / 6.2 LB

Pre-installation requirements: Charger Voltage: 110V / 220V; Machine Dimension: 340 × 130 × 118 mm / 13.4" × 5.1" × 4.7"; Net Weight: 2.8 KG / 6.2 LB.

Compatible Applications & Materials

industrial products — primary target products for this Handheld Strapping Tool line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Insert Battery &amp
Check Power: Push a fully charged battery into the base slot until a "click" sound is heard
Power on and verify the head indicator light turns on normally

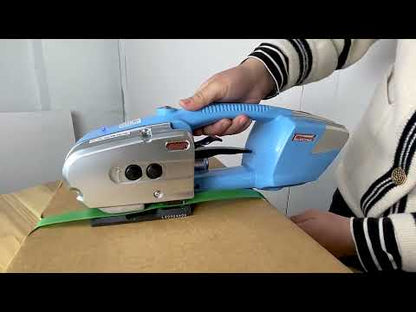

Thread Strap: Loop the strap around the package
Use your left hand to flatly overlap the bottom strap (leaving a ~30cm tail) and the top strap together
Open Jaw &amp
Load: Press down the bottom release lever with your right hand, fully push the overlapping straps into the guide slot (top strap on top, bottom strap on the bottom), and release the lever to engage the teeth

Engineering FAQ

Can this machine use PP straps, or is it restricted to PET straps?
A: Both are supported. The JD-1316 is a universal model compatible with both PET and PP straps in widths from 13 to 16 mm (shipped standard for PET, adjustable spring setup easily adapts to PP).

Are metal clips required? Is the joint secure?
A: Absolutely no metal clips are needed. Utilizing friction welding technology, the strap fuses with itself, achieving a joint strength of approx. 75% of the parent strap—fully meeting standard transport and warehouse stacking requirements while leaving smooth, scratch-free joints.

How tight can it pull? Will it crush cardboard cartons?
A: Maximum tension force is 2800 N, and the tension knob allows adjustable tightening (approx. 600–2800 N). Adjust to lower settings for fragile cartons to prevent crushing, and higher settings for heavy pallets and steel.

How do I adjust the welding time?
A: Welding time is adjustable from 1 to 3 seconds. Increase time if the weld is loose, or shorten it if the strap surface scorches or melts through. PP straps generally require slightly shorter welding durations than PET straps.
