CECLE packaging machinery

DDZ-400/500/600 Double Chamber Vacuum Packing Machine for Meat & Seafood

Name: DDZ-400/500/600
Brand: CECLE
Price: 2299.0 USD
Availability: InStock

$2,299.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model DDZ-400 DDZ-500 DDZ-600

Shipping Method By sea to door (30-45 days) Ship from USA to USA (5-10 days)

Quick Answer: The CECLE DDZ-400/500/600 is a Double Chamber Vacuum Packing Machine with a pumping speed of 40 m³/h, engineered for stable, repeatable commercial-scale production.

CECLE DDZ-400/500/600 vs. Traditional / Generic Alternative

Where the CECLE DDZ-400/500/600 stands out against manual or generic double chamber vacuum packing machines — measured on the dimensions buyers care about most.

Station Count & Product Contact

CECLE DDZ-400/500/600Number of Sealing Bars: 4 Bars (2 per chamber)

Single-Station HeadOne item per cycle, and product paths are fixed: raising volume means adding operators rather than adding output.

Cycle Time & Throughput

CECLE DDZ-400/500/600Pumping Speed: 40 m³/h (High Volume)

Operator-Paced CyclingReal output tracks how fast the operator loads, so hourly rates fall well short of the figure quoted on the spec sheet.

Power & Drive Rating

CECLE DDZ-400/500/600Motor Power: 1.5 KW

Unrated Wiring & Oversized LoadNo earthing or overload protection for continuous shifts; leads and terminals run hot at peak draw, and the motor bogs down under load.

Footprint & Working Envelope

CECLE DDZ-400/500/600Inner Chamber Dimensions: 500 × 400 × 115 mm

Bench-Scale EnvelopeBuilt around one small working envelope, so anything larger than the sample has to be split across several passes or handed off to an outside shop.

Technical Specifications

Technical Parameters / Model	DZ-400 (Double Chamber)	DZ-500 (Double Chamber)	DZ-600 (Double Chamber)
Operating Voltage	220V/380V (Customized)	220V/380V (Customized)	220V/380V 50/60Hz
Motor Power	0.9 KW	1.5 KW	1.5 KW (or Dual Pump)
Number of Sealing Bars	4 Bars (2 per chamber)	4 Bars (2 per chamber)	4 Bars (2 per chamber)
Single Sealing Bar Length	400 × 10 mm	500 × 10 mm	600 × 10 mm
Inner Chamber Dimensions	400 × 400 × 115 mm	500 × 400 × 115 mm	600 × 400 × 115 mm
Pumping Speed	20 m³/h	40 m³/h (High Volume)	40 m³/h (High Volume)
Packing Capacity	4~6 cycles/min (Alternating)	4~6 cycles/min (Alternating)	4~6 cycles/min (Alternating)
Overall Dimensions	1000 × 600 × 900 mm	1200 × 600 × 900 mm	1400 × 600 × 900 mm
Machine Weight	Approx. 130 kg	Approx. 160 kg	Approx. 200 kg

Compatible Applications & Materials

industrial products — primary target products for this Double Chamber Vacuum Packing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

To maximize the capacity of the double-chamber machine and prolong equipment life, please follow these continuous operation protocols:

Engineering FAQ

Why do large food factories choose a double-chamber vacuum machine instead of buying two single-chamber machines?
A: The "swinging" design of the double-chamber machine naturally fits human ergonomics. One worker stands perfectly in the middle of the machine: loads bags on the left, pushes the lid, loads bags on the right, pushes the lid. The movements flow smoothly without any waiting time. Operating two single-chamber machines not only requires more floor space but walking back and forth also increases worker fatigue.

Can this machine package liquids (e.g., hot pot soup base, broth)?
A: Absolutely. The double-chamber machine features a deep-concave vacuum chamber chassis. Because the pressure inside and outside the bag is balanced across the entire chamber during the vacuum phase, the liquid inside the bag will not boil or splash out. It is the perfect solution for packaging liquid foods like hot pot bases, sauce packets, and fish soup pouches.

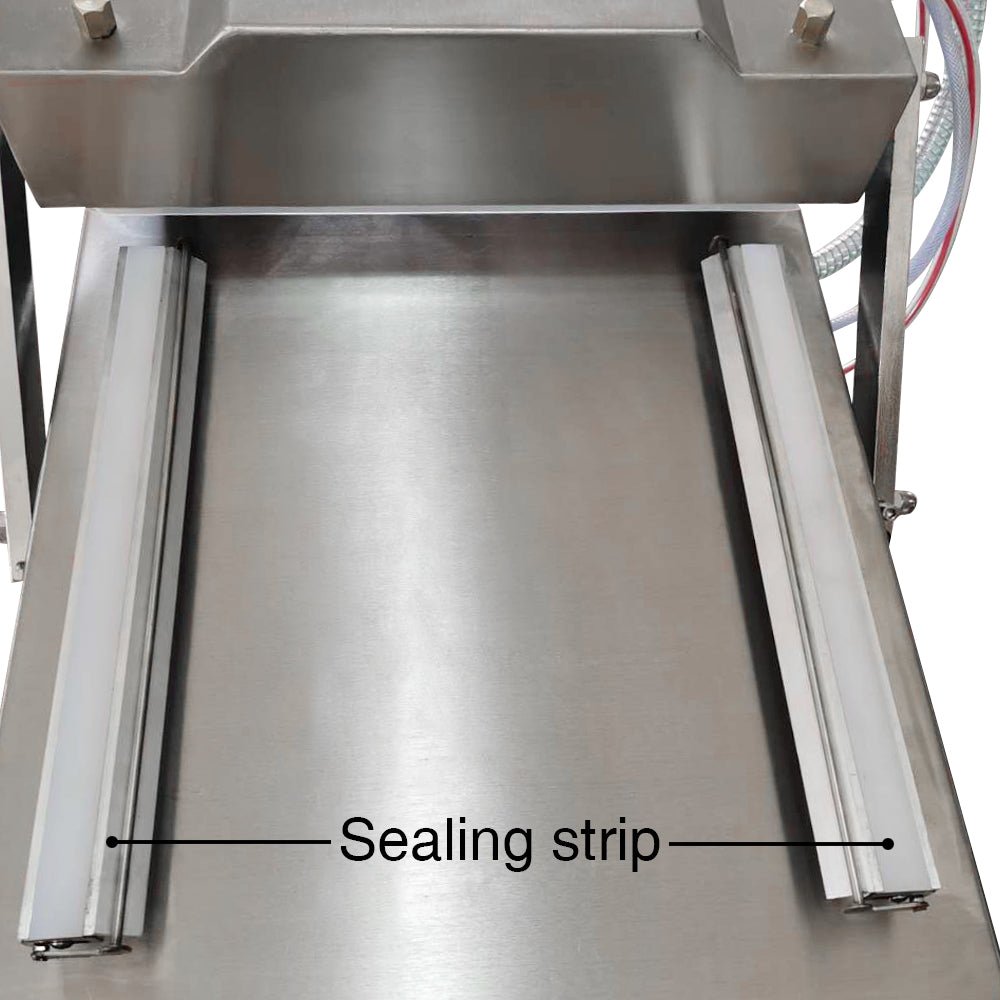

There are four sealing bars. Will it be troublesome to replace the consumables?
A: Not at all. CECLE's sealing bars feature a quick-release design. You simply pull the entire sealing bar straight up, replace the heating wire and Teflon high-temperature tape on your workbench, and then snap it back into the machine. Maintenance is simple and fast.

What routine maintenance keeps the DDZ-400/500/600 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the DDZ-400/500/600 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
