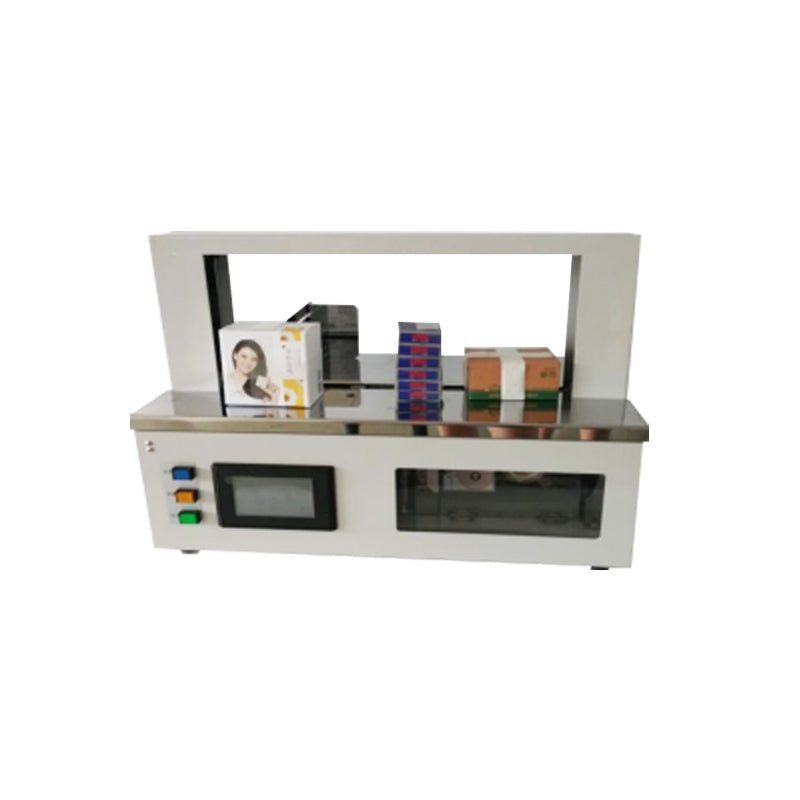

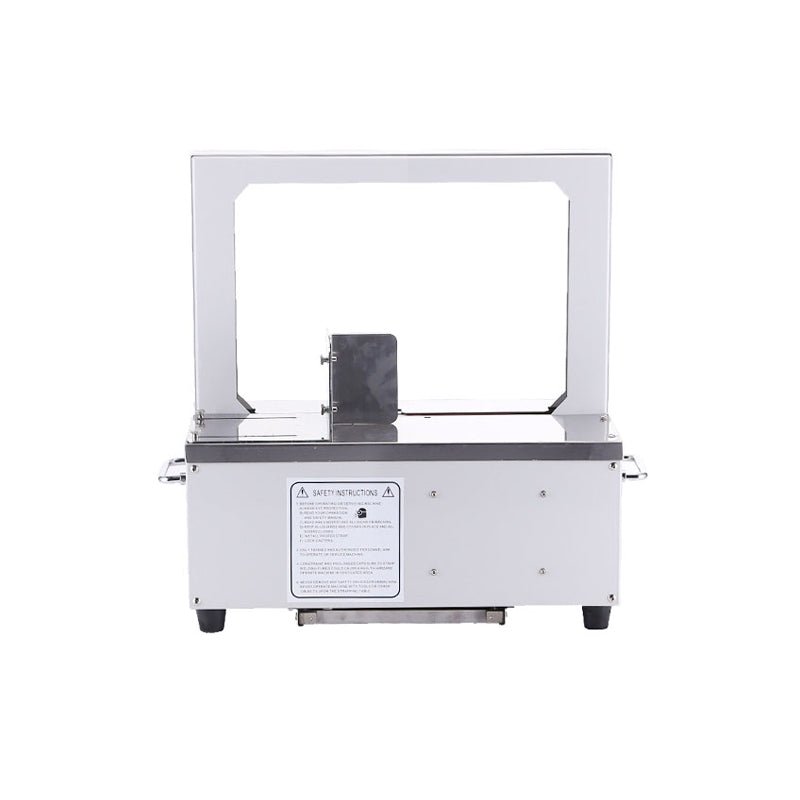

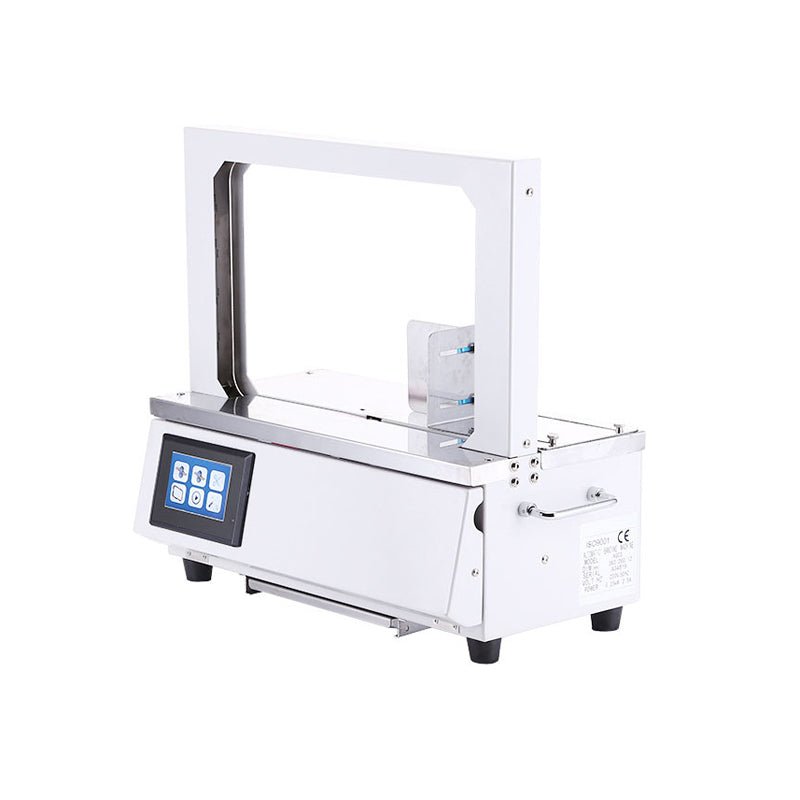

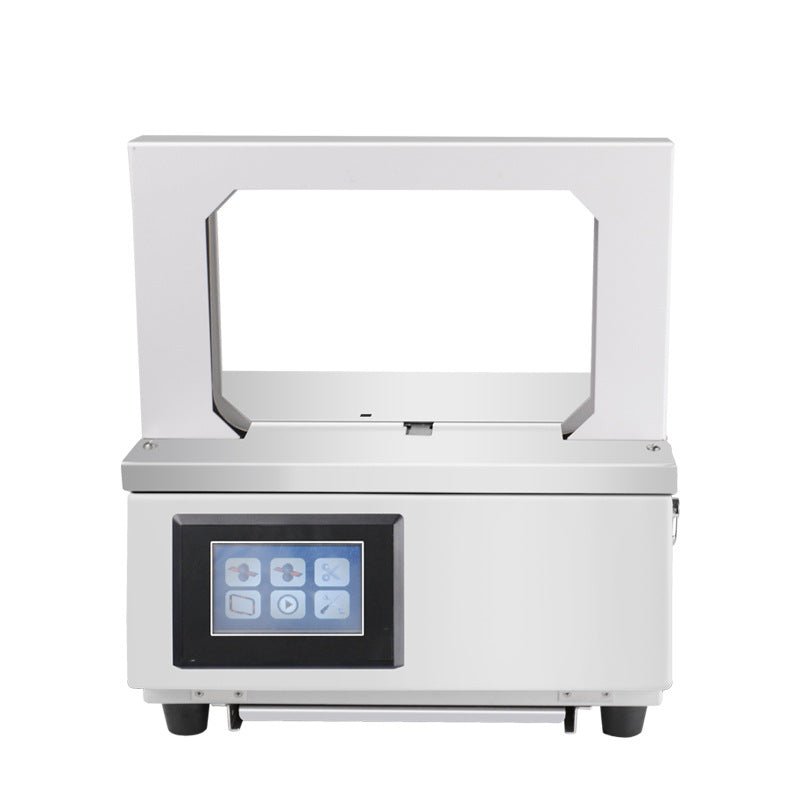

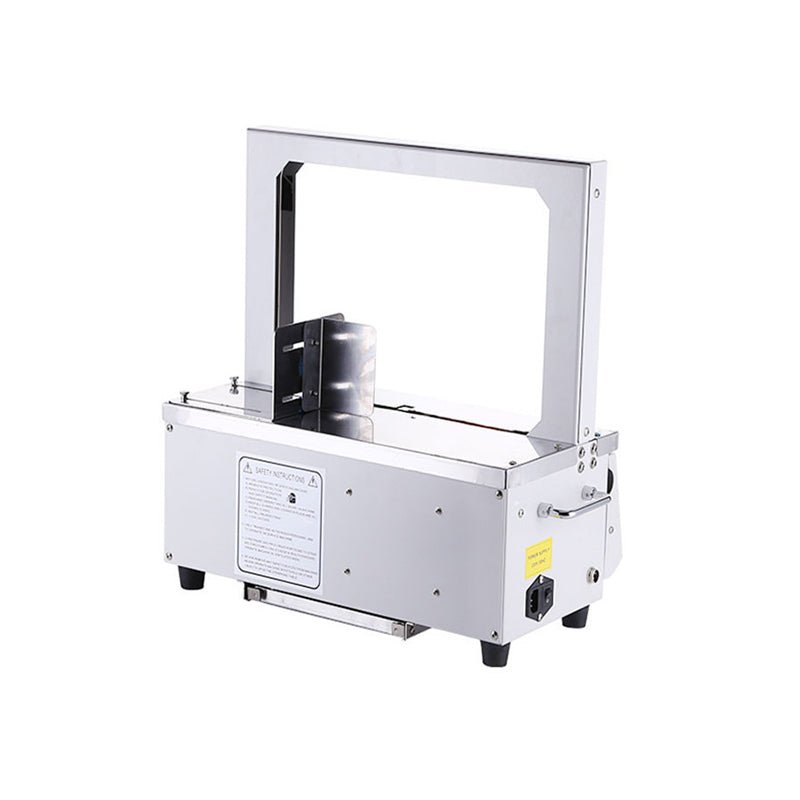

TDAG-12/20 Automatic Banding Machine for Pharma Cartons & Print Products

Name: TDAG-12/20
Brand: CECLE
Price: 1650.0 USD
Availability: InStock

$1,650.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model TDAG-12 TDAG-20

Shipping method By Express(About 7-12 days)

Quick Answer: The CECLE TDAG-12/20 TDAG-12 and TDAG-20 are fully-automatic OPP/paper banding machines specifically designed for printing, pharmaceutical, and delicate retail industries.

CECLE TDAG-12/20 vs. Traditional / Generic Alternative

Where the CECLE TDAG-12/20 stands out against manual or generic automatic banding machines — measured on the dimensions buyers care about most.

Thermal Response & Heating System

CECLE TDAG-12/20Damage-Free Bundling (Core Value): While standard PP strapping bands possess high tension that crushes and leaves indentations on medicine or gift boxes.

High-Tension PP StrappingStandard PP bands pull tight enough to crush cartons, books and print, and the indentation is permanent.

Strap Compatibility & Range

CECLE TDAG-12/20Band Width: 12 mm

Fixed Single-Strap ArchAccepts one strap width only, so every changeover needs a second machine or a field retrofit, and off-width strap jams in the guide track.

Footprint & Working Envelope

CECLE TDAG-12/20Min. Package Size: 30 × 10 mm

Bench-Scale EnvelopeBuilt around one small working envelope, so anything larger than the sample has to be split across several passes or handed off to an outside shop.

Power Supply Flexibility

CECLE TDAG-12/20Voltage: 220 V

Single-Voltage OnlyWired for one supply only, so a site with a different voltage needs an external transformer or a rewire before commissioning.

Technical Specifications

Items	TD-101 / TDAG-12	TDAG-20
Voltage	220 V	220 V
Applicable Band Material	OPP Film Band / Paper Band	OPP Film Band / Paper Band
Band Width	12 mm	20 mm
Band Thickness	0.12 mm	0.12 mm
Arch Size	W 200 × H 160 mm	W 470 × H 205 mm
Min. Package Size	30 × 10 mm	30 × 10 mm

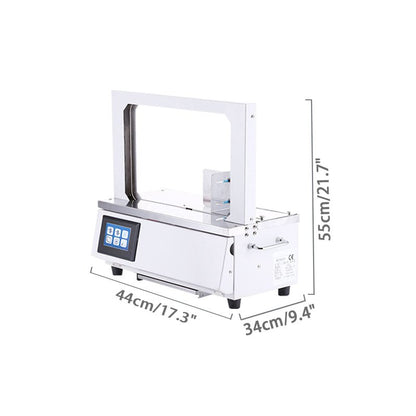

Machine Dimension	600 × 240 × 470 mm	642 × 354 × 476 mm
Weight	35 KG	50 KG

Compatible Applications & Materials

industrial products — primary target products for this Automatic Banding Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

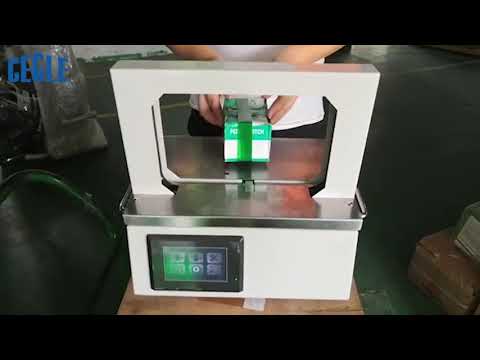

Standard Operating Procedure (SOP)

Preheat: Connect power, turn on the master switch, and allow the heating element to warm up for 1–2 minutes

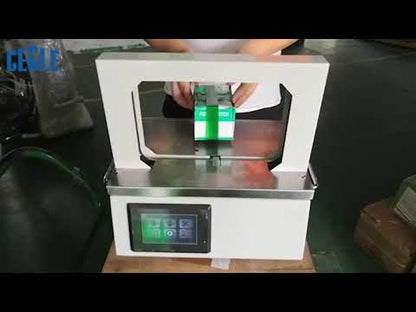

Position Package: Push the items to be bundled ( Note: Single item dimensions must not be less than 30×10 mm, and must fall within arch dimensions ) into the photoelectric sensing zone on the tabletop
Auto Banding: The machine automatically executes: tension ➔ heat-seal ➔ cut ➔ band-reset upon sensing the package
Remove Product: Take away the banded finished product and proceed to the next cycle.

Engineering FAQ

What is the difference between a banding machine and a strapping machine?
A: Strapping machines utilize thicker PP/PET bands for heavy goods , offering high tension that leaves indentations on soft boxes ; Banding machines utilize a narrow ~0.12 mm band (OPP film or paper) to loop light, small items with gentle tension, leaving surfaces undamaged and residue-free . Use banding machines for medicine boxes, cards, currency, and printed goods; use strapping machines for cartons and pallets.

Does the banding machine use glue?
A: No. It utilizes thermal heat-sealing , melting the band itself via heat without involving any glue. Consequently, it leaves zero adhesive residue, doesn't dirty boxes , and requires no post-cleaning—making it the preferred choice for the food and pharmaceutical industries.

What type of bands can be used? Are paper bands supported?
A: Yes. Compatible with OPP film bands and paper bands with a thickness of 0.12 mm, provided widths match the machine model (TDAG-12 uses 12 mm bands; TDAG-20 uses 20 mm bands).

What routine maintenance keeps the TDAG-12/20 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the TDAG-12/20 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
