A333 Manual Steel Strapping Tool for Coil Bundles & Heavy Pallets

$309.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model A333

Shipping method By Ocean+Express Only For US(About 35-40 days) By Express(About 7-12 days)

Quick Answer: The CECLE A333 is a heavy-duty manual steel strapping tool designed for rigorous, power-free, and air-free industrial environments like steel mills and open-air lumber yards.

CECLE A333 vs. Traditional / Generic Alternative

Where the CECLE A333 stands out against manual or generic manual steel strapping tool — measured on the dimensions buyers care about most.

Sealing / Transfer Quality

CECLE A333Zero Buckle Cost: Eliminates the need to purchase metal clip seals (sealing clips) and removes tedious threading/clipping steps.

Metal Clip SealsEvery joint needs a metal clip plus a separate tensioner and crimper, so consumable cost and joint failure both climb, and a loose clip is found only after the pallet has shipped.

Output Speed & Throughput

CECLE A333Ultra-Reliable & Rugged All-Weather Operation: Whether in humid, sandy, muddy, or sub-zero freezing environments.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Strap Compatibility & Range

CECLE A333Applicable Strap Material: Steel Strap

Fixed Single-Strap ArchAccepts one strap width only, so every changeover needs a second machine or a field retrofit, and off-width strap jams in the guide track.

Footprint & Working Envelope

CECLE A333Machine Dimension: 387 × 168 × 308 mm / 15.2" × 6.6" × 12.1"

Bench-Scale EnvelopeBuilt around one small working envelope, so anything larger than the sample has to be split across several passes or handed off to an outside shop.

Technical Specifications

Items	Specifications
Model	A333
Drive Type	Pure Manual Operation
Joint Type	Sealless Punch-Lock Joint (No metal clips required)
Applicable Strap Material	Steel Strap
Strap Width	13–19 mm
Strap Thickness	0.38–0.7 mm
Machine Dimension	387 × 168 × 308 mm / 15.2" × 6.6" × 12.1"
Net Weight	4.5 KG / 10 LB

Pre-installation requirements: Machine Dimension: 387 × 168 × 308 mm / 15.2" × 6.6" × 12.1"; Net Weight: 4.5 KG / 10 LB.

Compatible Applications & Materials

industrial products — primary target products for this Manual Steel Strapping Tool line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

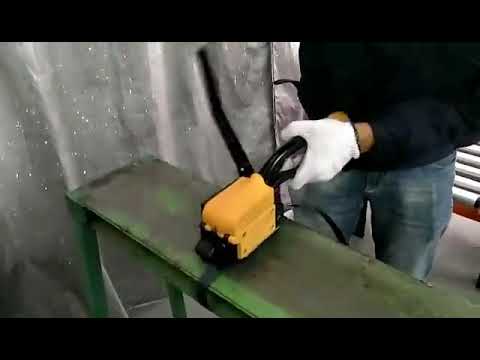

Position Strap: Wrap the steel strap around the object, hold the strap end tightly with your left hand, and pull it firmly toward the tool with your right hand
Load Strapping Bands: Lift the tensioning handle with your right hand, and use your left hand to insert the accurately aligned overlapping steel straps into the machine, pressing them firmly
Allow the tail end of the lower strap to slightly extend past the baseplate, ensuring the straps are securely clamped by the strap guide plates
Tension Strap: Firmly grip the tension handle positioned above the strap with your hand, moving it back and forth with your right hand to operate the ratchet mechanism until the steel strap is fully tightened
Seal Joint: Use your left hand to push the sealing handle forward all the way, then pull it back to its original position
While sealing, firmly grip the tensioning lever to control the sealing force
Cut: Hold the severed strap tail with your left hand, lift the sealing handle with your right hand, and push the strapping machine off to the right.

Engineering FAQ

Does the A333 really not need metal clips/seals? Will it loosen or crack during transit?
A: Absolutely no metal clips are needed. The A333 utilizes industrial-standard "sealless punch-lock" technology, where two layers of steel strapping undergo specialized deep-die shearing and mutual interlocking. The lock joint can withstand roughly 80% of the strap's ultimate breaking strength, widely applied in heavy industrial export shipping with extreme vibration resistance.

Does it require electricity or compressed air?
A: None at all. The A333 is a 100% mechanical manual tool requiring zero power, zero batteries, zero air supplies, and zero hydraulic oil. It can be operated anywhere—outdoor construction sites, cargo yards, or inside shipping containers.

What routine maintenance keeps the A333 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the A333 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
